Locomotive operators, engineers and crew have to work in every geographic condition. During summer time, the hot temperature annoys people. Hot temperature can rotten foods and fruits. Cool beverage is one of mandatory requirements when you need to seat for hours in a cabin.
World Part Supplier Co. has solution for this major problem.
We have manufactured a system and update it day by day to the recent technology. World Part Supplier Co. (#WPSupplier) is a manufacturer of different models of Locomotive Driver Cabin Refrigerator. Two common models are:
1) WPS-3000
2) WPS-3300
Refrigerators that World Part Supplier manufactures are designed based on scientifically studies. Refrigerators are designed for Middle East temperature. World Part Supplier manufactures refrigerators that are appropriate for high humidity and high temperature.
We follow Thermodynamic rules and laws and perform all scientific formulas in designing refrigerators.
WPS-3000 and WPS-3300 refrigerators have same refrigeration system logic but the differences are:
- WPS-3000 has capacity of 70 liters while WPS-3300 has capacity of 40 liters.
- WPS-3000 mounts on the floor of locomotive driver cabin but WPS-3300 is placed under driver desk.
Since refrigerators will be used in motion and vibration is considered as one of the main factors, we use rotary compressor for our products.
Referring to PSYCHROMERIC graphs, we guarantee that our products match to ideal condition.
Knowing above-mentioned technical information, herein we introduce our products and their spare parts. For further information and / or placing purchasing order, please visit our website: http://www.WPSupplier.com
Overview of Locomotive Driver Cabs Refrigerators (WPS-3000 and WPS-3300):
- Refrigerator mechanical capacity equal to 70 liters (WPS-3000)
- Refrigerator mechanical capacity equal to 40 liters (WPS-3300)
- Cooling capacity: 1050 BTU
- Input voltage range: 60 – 90 VDC
- Coolant: R22, R134a, R404 or any environmentally friend coolant.
- Localized condenser for very hot and tropical regions
- Sine wave inverter – Modulated
- Output power current: 9A
- Overload Current Smart Protection
- Reversible Door design
- Usage of industrial fixed thermostat
- Usage of 110 VAC consumed power to protect body health against any electrical shock
- 20 minutes cooling time to appropriate cool temperature
- Proper sealing for heat dissipation
- Electrostatic powder painting for better cover against contamination and oil and ease of cleaning – Anti rust and corrosion.
Parts List, Parts Numbers and Quantity:
Parts of WPS-3000 and WPS-3300 can be used on some other manufacturers refrigerators. Herein we have listed parts and their part numbers and required quantity of each one. If any of those parts can be used on other suppliers refrigerator, it will be shown in the list:
|
|
Technical Specification |
WPS Part Number |
MEI Equal Part Number |
Quantity per Unit |
|
0 |
Locomotive Driver Cab Refrigerator 70 litters |
WPS-3000 |
MEI417 |
REF |
|
1 |
Inverter, Sine Wave, 74VDC to 110VAC, Exclusive |
WPS-3001 |
I111684-3* |
1 |
|
2 |
Compressor, 110VAC, 1/6 HP, Mitsubishi Electrics |
WPS-3002 |
M111475* |
1 |
|
3 |
Cooling Fan, Mount on plate, Diameter 150mm |
WPS-3005 |
K112946* |
1 |
|
4 |
Condenser, Aluminum alloy, Exclusive |
WPS-3004 |
M511707* |
1 |
|
5 |
Start capacitor, 130-180 µF |
WPS-3006 |
G911476-4 |
1 |
|
6 |
Run capacitor, 6.3 µF |
WPS-3007 |
G911476-5 |
1 |
|
7 |
Overload relay, Compressor |
WPS-3003 |
N/A |
1 |
|
8 |
Dryer, Alco, 1/4 |
WPS-3008 |
M310412 |
1 |
|
9 |
Mounting Plate, Fan mounting bracket |
WPS-3031 |
N/A |
1 |
|
10 |
Refrigerator Base Plate-Complete with all brackets, Thickness 3 mm |
WPS-3028 |
N/A |
1 |
|
11 |
Compressor vibration damper and absorber |
WPS-3032 |
N/A |
1 |
|
12 |
Refrigerator Power Cord, Anti Noise, 2 meters |
WPS-3038 |
Y412085 |
1 |
|
13 |
Side body- Inverter Side- material ST37, Coated |
WPS-3014 |
N/A |
1 |
|
14 |
Side body- Condenser Side- material ST37, Coated |
WPS-3015 |
N/A |
1 |
|
15 |
Inspection Plates, Rear & Front, Aluminum Alloy |
WPS-3037 |
N/A |
2 |
|
16 |
Door- external plate, material ST37 |
WPS-3018 |
N/A |
1 |
|
17 |
Door- internal plate, material steel 304 |
WPS-3019 |
N/A |
1 |
|
18 |
Shelf, mezzanine, material steel 304 |
WPS-3020 |
N/A |
1 |
|
19 |
Drainer, refrigerator bottom net, coated |
WPS-3025 |
N/A |
1 |
|
20 |
Shelf, refrigerator top shelf, coated |
WPS-3021 |
N/A |
1 |
|
21 |
L-shape bar, Shelf holder, material steel 304 |
WPS-3024 |
N/A |
2 |
|
22 |
L-shape bar, Shelf Holder, Small size, Steel 304 |
WPS-3022 |
N/A |
2 |
|
23 |
L-shape bar, Shelf Holder, Big size, Steel 304 |
WPS-3023 |
N/A |
2 |
|
24 |
Refrigerator container drainage pipe |
WPS-3029 |
N/A |
1 |
|
25 |
L-shape internal section cover bar, Steel 304 |
WPS-3043 |
N/A |
1 |
|
26 |
Refrigerator carriage handles |
WPS-3030 |
P111699* |
2 |
|
27 |
Plate, refrigerator back cover, Material ST37 |
WPS-3016 |
N/A |
1 |
|
28 |
Rubber, Door Sealing, Exclusive |
WPS-3026 |
N/A |
1 |
|
29 |
Hinge, Refrigerator Door, RH2331 |
WPS-3009 |
P110501 |
2 |
|
30 |
Door Latch, RH3350 |
WPS-3010 |
P110500 |
1 |
|
31 |
Blot, Auto Drive, External Bodys bolt |
WPS-3033 |
N/A |
34 |
|
32 |
Bolt, Side body to Basement |
WPS-3034 |
N/A |
6 |
|
33 |
Bolt, Inverter holder to side body |
WPS-3035 |
N/A |
2 |
|
34 |
Cap, Side body, Condenser Side |
WPS-3036 |
N/A |
2 |
|
35 |
Plate, Refrigerator top external cover, ST37 |
WPS-3017 |
N/A |
1 |
|
36 |
Thermometer |
WPS-3011 |
G411938 |
1 |
|
37 |
Fitting (Tightener), power cable, steel |
WPS-3012 |
N/A |
1 |
|
38 |
Accumulator |
WPS-3013 |
Y412968 |
1 |
|
39 |
Foam, Insulator |
WPS-3041 |
N/A |
A.R |
|
40 |
R22 refrigerant |
WPS-3040 |
N/A |
A.R |
|
41 |
Hose, water drainage to the locomotive deck, 0.5m |
WPS-3039 |
O311053A |
A.R |
|
42 |
Disinfection and cleaning spray of steel body |
WPS-3042 |
N/A |
A.R |
|
43 |
Steel body of refrigerator, complete set |
WPS-3027 |
N/A |
1 |
|
44 |
Bolt, Internal section cover L-shape bar holder |
WPS-3044 |
N/A |
3 |
If you are interested in downloading Maintenance Instruction (MI) of refrigerator, please visit http://www.wpsupplier.com/images/catalog/5a7d5e5f31f6d.pdf
In order to purchase our products you can go online http://www.wpsupplier.com/login
After logging in, you can place your order online and we will answer you very shortly.
|
|
||||
|

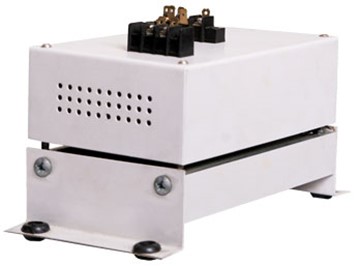

WPS-3001 _ 1 Phase Sine Wave 74 VDC to 115 VAC inverter |
||||
 |
||||
|
|
||||
|
WPS-3005 _ Condenser Fan – Axial |
||||
|
|
||||
|
|
||||
|

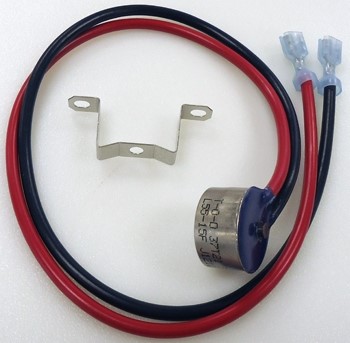

WPS-3011 _ Fixed thermostat |
||||
|
|
||||
|

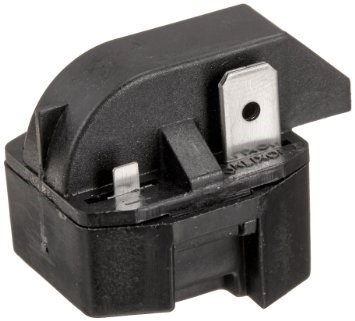

Compressor Thermal Overload Relay |
||||
|
|
||||
|
|
||||
|

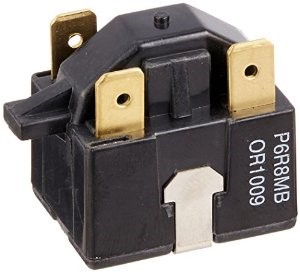

WPS-3003 _ Compressor Overload Relay |
||||
|
|
||||
|
|
||||
|

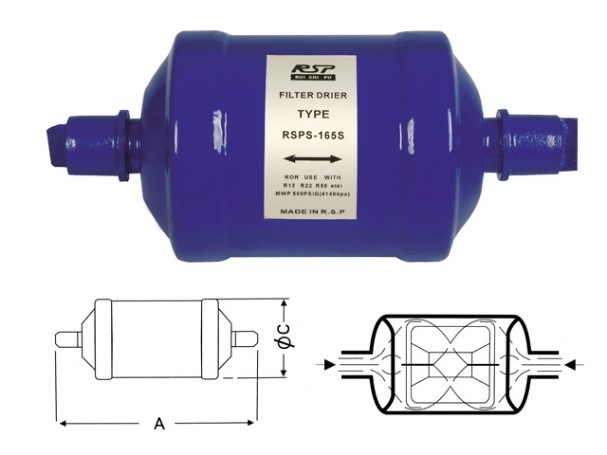

WPS-3008 _ Refrigerator Drier.. Varies depending on customer request |
||||
|
|
||||
|
WPS-3010 _ Door Latch.. Adjustable in 4 positions |
||||
|
|
||||
|
WPS-3009 _ Door Hinge .. Edgemount, Industrial purposes |
